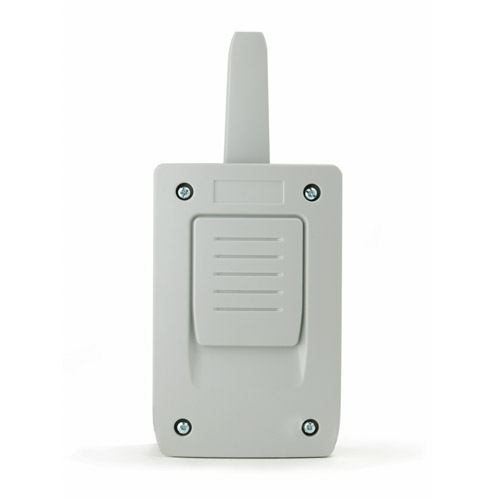

868 MHz Base Receiver

CUT SHEET

FEATURES

Versatility

• Possibility of using different elements activation (basic and programmable transmitters)
• Allows for the GROUPS of the FREE system (FREE T and FREE TH) to be identified
• Can be installed indoors and outdoors

Simple way to supply new transmitters

• Programming of new transmitters and cancellation of lost or stolentransmitter without leaving the office
• Ability to program new radio transmitters without access to receiver

Flexibility and speed when programming equipment

• The transmitters and proximity equipment are programmed by radio without mechanical contact.

SPECIFICATIONS

BASE 30-1B or 2B

• 868 MHz radio receiver, 1 or 2 relays, 30 codes
• Allows for the Free system groups to be identified (FreeT and FreeTH)
• Fixed 30 code memory
• Power supply: 12/24Vac/dc selectable with Jumper
• Standby/Op. consumption 18mA/80mA
• Operating temperature -4ºF – 185ºF
• Built-in antenna
• Code self-learning
• IP54 (IP65 with gland)
• Size: 5 x 3 x 1.5 inches

BASE 500-2B

• 868 MHz radio receiver, 1 or 2 relays, 30 codes.
• BASE 500-2B: Relay 1 impulse and relay 2 selectable impulse/ bi-stable (relay status can be modified using the ASSISTANT programming tool)
• Removable 500-code memory
• Power supply: 12/24Vac/dc selectable with Jumper
• Standby/Op. consumption 60mA / 90mA
• Operating temperature -4ºF – 185ºF
• Built-in antenna
• Code self-learning or with programmer
• IP54 (IP65 with gland)
• Size: 5 x 3 x 1.5 inches
