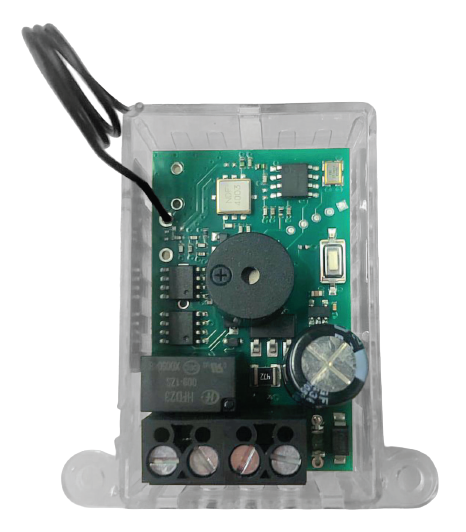

Nano Long Range Receiver

DOWNLOADS
Part No: RECTSNANO

FEATURES

  • Available in 318 MHz (44 Memory), 433 MHz (85 Memory) or 868 MHz (85 Memory)
  • Small size: 2 x 1-1/4 x 3/4 inches
  • 5 year warranty
  • 12-24 VAC/DC
    • Consumption at 24V: 9mA at rest, 31mA relay excited
    • Consumption at 12V: 9mA at rest, 26mA relay excited
  • Range: 500 to 600 ft
  • 1 channel
  • Compatible with a wide variety of handheld and wall-mounted transmitters
  • Programming options:
    • Push to learn
    • 2 button hand held programming remote



SPECIFICATIONS

  • Receiver type: Superheterodyne
  • Local oscillator frequency: 6.6128 MHz
  • Demodulation: Am/ASK
  • Local oscillator: VCO / PLL
  • Channel width: > 25 KHz
  • Intermediate frequency: 10.7 MHz
  • Input sensitivity: -115 dBm
  • Local oscillator spurious emissions: < -57 dBm
  • Input load: 50 OhmMax applicable power: 24 VA
  • Relay number: 1
  • Contacts: C-NO
  • TX security code: 264
  • Operating temperature: -4° to 158° F
  • Housing protection: IP2X
