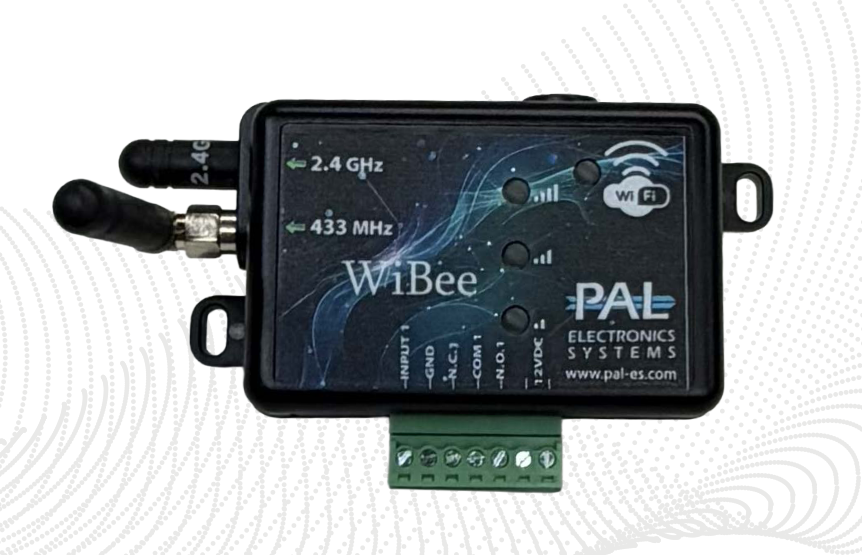

PAL® WiBee Controller
Wi-Fi and 433 MHz cloud controller with one relay, one alert input, PalGate app and web portal management, and nearby-only or unlimited-distance opening.
Applications
Specifications
MountingSurface Mount
Units
RangeNearby only or unlimited distance (configurable)
Dimensions2.09 (L) x 3.15 (W) in
Weight3.07 oz
Operating Temperature-4°F to 158°F
Part #
Pricing:Contact for Pricing
Related Accessories
Features
- Control with PalGate app (iOS and Android)
- Manage from the PalGate app or PAL web portal
- Unlimited users; each unit includes 5 PalGate app users by default, with additional users available
- 1 output relay (N.O./N.C.)
- 1 input channel with real-time email and PalGate push notifications while Wi-Fi is connected
- Opening methods: proximity, app, Siri, Google Assistant, remote control, and wireless vehicle detector
- Configurable opening distance: nearby only or unlimited distance
- API integration available
- Unlimited logs
- User access restriction by specific days and hours (unit must be on Wi-Fi for accurate time)
- Timers, event scheduling, and a programmable astronomical clock (unit must be on Wi-Fi for accurate time)
- Import and export data via Excel
- Adjustable relay pulse width (1–255 seconds in the web portal)
- 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
- 433 MHz remote-control receiver with SMA antenna
- Compact 53 × 80 mm housing with four LED status indicators
Documentation
Requires a stable 12VDC/1A power source. When mounting inside a metallic housing, connect an external antenna and route it outside. Protect the unit from excessive humidity and insect infiltration. IEEE 802.11b/g/n 2.4 GHz Wi-Fi only (not 5 GHz). An annual subscription is required.
