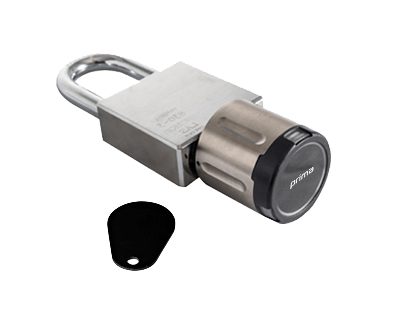

Padlocks – Secure, economical and reusable
One of the advantages of the padlocks with the SensoLock® reader is that it is not necessary to change the padlock due to lost access tags or cards. This is why the padlocks from Prima offer the perfect solution for areas where several users need to have access or areas where there is a need to change the padlocks on a recurrent basis; such as bike sheds, basements, garages containers and construction sites. Through a simple procedure in the Nova software, it is possible to reset the readers and thereby erase all the associated smart access tags at the same time. This procedure makes it easy to reuse the padlocks in either the same area or somewhere else. It is possible to limit the access to a certain time frame, and also to assign different access rights to different people. The electronic padlock is both secure, cost efficient and reusable.
Offline padlocks – part of the FlexAir® access control system

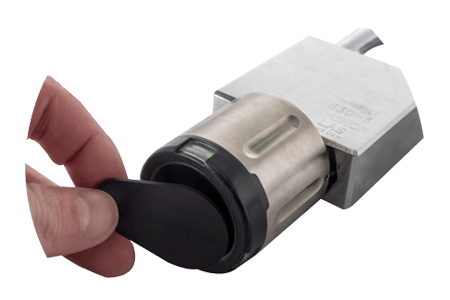

Prima’s padlocks with SensoLock® is a product that ensures a flexible and future-proof solution within locking systems. In order to make it easy to overview and control who has access to which area, the padlock works by scanning a personal access tag or card in front of the reader and is compatible with both offline and online readers within the system. Any access control system will need at least one online reader that can update access tags and cards with the current access rights.
Design and contents

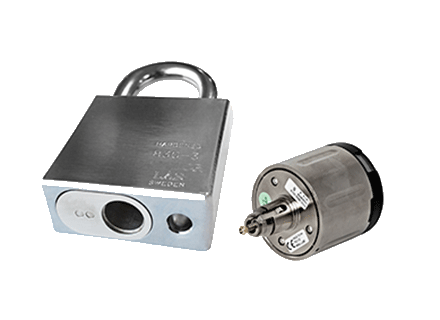

The padlocks with SensoLock® from Prima includes the following:
- 1 ANCHOR padlock with safety class 3
- 1 oval cylinder built into the padlock
- 1 SensoLock® electronic, cylindrical knob
The electronic padlock is available in two different sizes with an internal lock bracket height of either 28 mm or 50 mm and is suitable for both indoor and outdoor installations.
Extra security

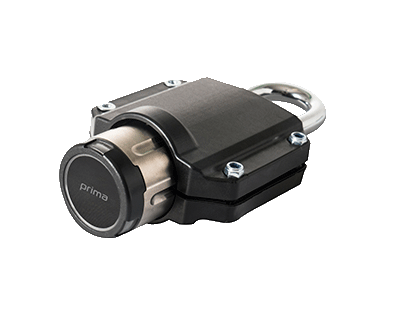

Prima’s vandal shield adds extra security due to its flame retardant, vandal-proof and impact-resistant material – PA6G30 polycarbonate. The material is resistant against various forms of vandalism, such as fire, trashing, cuts and scratches.
Technical Specifications
| Article number | 8160020010 | 2283005 | 2283030 | 2283055 | 2283050 | 7010001011 |
| Specifications | SensoLock66 MIFARE offline cylinder lock – with 3 LEDs for signalling, 2 x CR-2 Lithium batteries and an oval cylinder housing in chrome brass | ANCHOR Padlock 830-3 B28 with security class 3 for oval cylinder housing. For indoor mounting | ANCHOR Oval Padlock 830-3 B28 with security class 3 for oval cylinder housing. For outdoor mounting with weather resistant exterior and an O-ring to avoid water getting into the padlock | ANCHOR Padlock 830-3 B28 with security class 3 for oval cylinder housing. For indoor mounting | ANCHOR Oval Padlock 830-3 B28 with security class 3 for oval cylinder housing. For outdoor mounting with weather resistant exterior and an O-ring to avoid water getting into the padlock | Vandal shield for SensoLock® in padlock designed in PA6G30 polycarbonate with 2 shells and 4 one-way bolts and 4 safety nuts |
| Dimensions | Diameter 45mm | Inner shackle height 28mm. Shackle 10mm in diameter |
Inner shackle 28mm Shackle 10mm in diameter |
Inner shackle height 50mm Shackle 10mm diameter |
Inner shackle height 50mm Shackle 10mm diameter |
B90 x H80 x D20/53mm |
